IP68 Waterproof
LNX-210DVH
DMX Constant Voltage
High-Power Decoder
The LNX-210DVH is an IP68 waterproof, constant voltage high-power DMX decoder developed by LINETX Technology. It supports RDM remote centralized control, making it ideal for demanding outdoor lighting environments.
- IP68 Waterproof Rating
- RDM Remote Management
- Total Current up to 300A
- Constant Voltage RGBW Output
- Internal Push-in Terminals
IP68
Waterproof
300A
Drive Current
RDM
Remote Mgmt
RGBW
Const. Voltage
Product Description
Discover the design and performance of the LNX-210DVH
Outstanding Outdoor Protection
The LNX-210DVH features a fully sealed IP68 waterproof design, purpose-built for outdoor LED lighting projects. Whether in heavy rain, moisture, or dusty environments, it operates reliably to ensure long-term stability of your lighting system.
- IP68 highest waterproof rating, fully dust-tight and waterproof
- Supports RDM remote centralized control and management
- Total drive current up to 300A for high-power applications

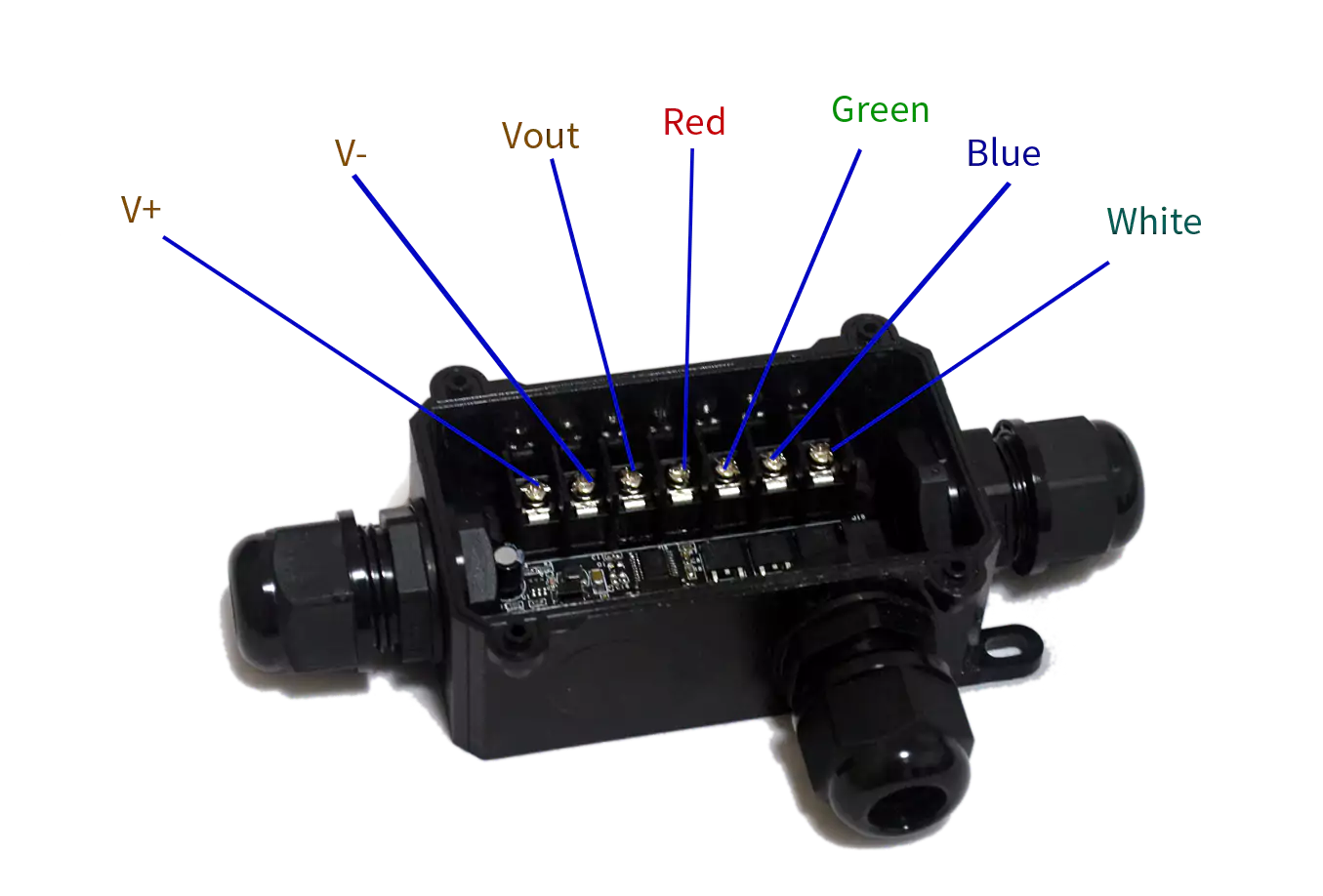

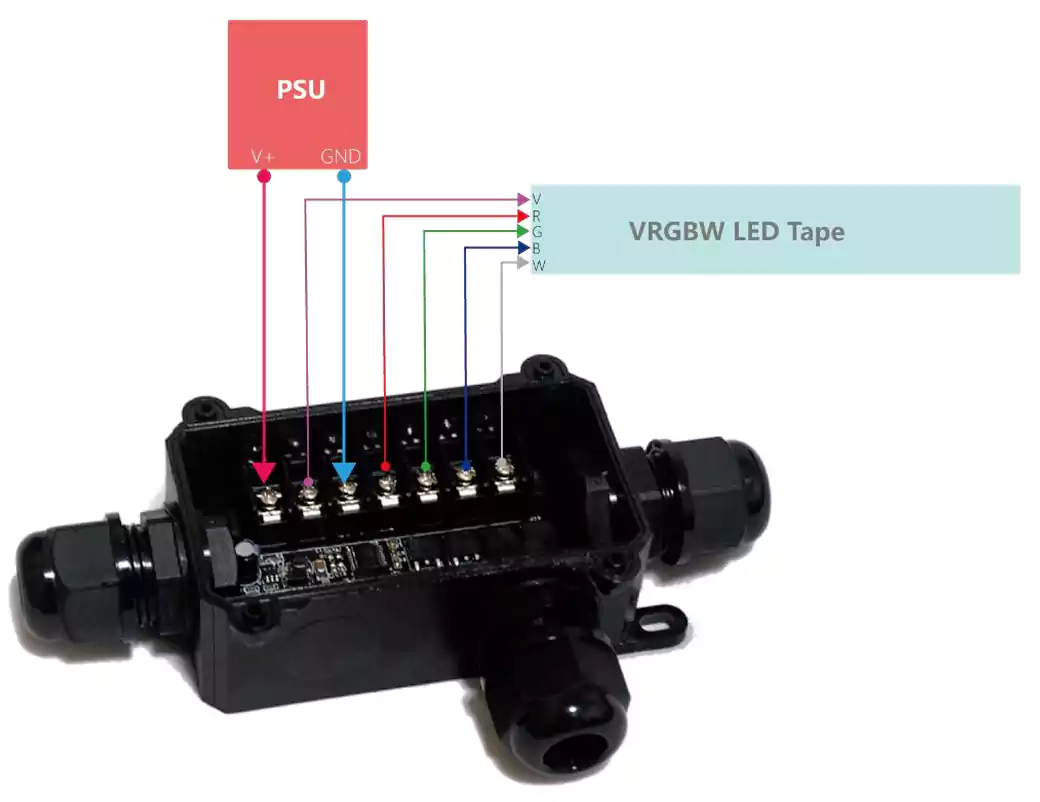

- Constant voltage RGBW interface, compatible with various LED fixtures
- Internal push-in terminal design for quick and easy installation

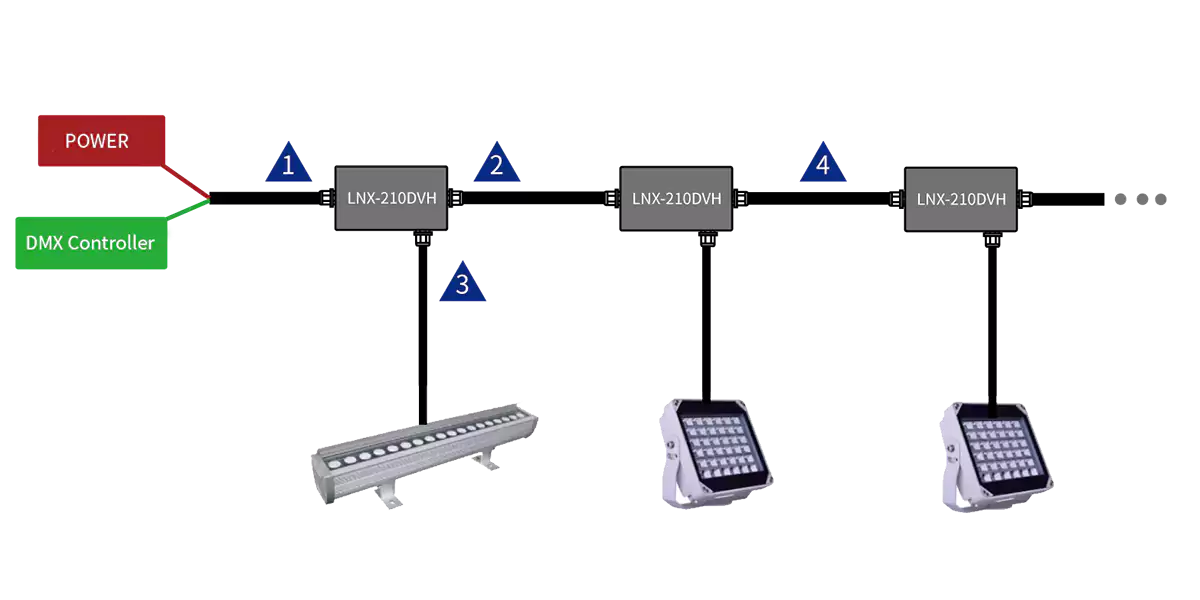

Application Scenarios
Typical outdoor applications for the LNX-210DVH
Technical Specifications
Detailed specs and technical data
| Parameter | Specification |
|---|---|
| Input Signal | DMX |
| Output Signal | PWM |
| Control Voltage | 12V / 24V DC (typical) |
| Control Current | 90A per channel |
| Device Port | Internal push-in terminal |
| Transmission Distance | — |
| MTBF | 100,000 hours |
| Power Supply | DC 12V / 24V |
| Power Consumption | 1W |
| Operating Temperature | -10 ~ 55℃ |
| Operating Humidity | 5% ~ 90% |
| Storage Temperature | -40 ~ 70℃ |
| Storage Humidity | 5% ~ 90% non-condensing |
| Dimensions | 50mm(L) × 40mm(W) × 30mm(H) |
Ordering Information
Available models and ordering details
| Model | Interface | Distance | Power | Available |
|---|---|---|---|---|
| LNX-210DVH | — | — | 12V / 24V | ✓ |
