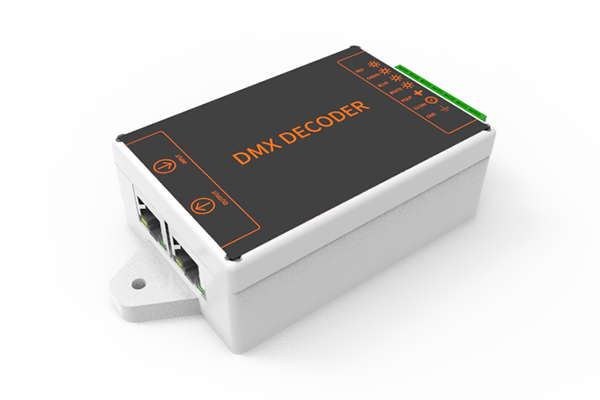

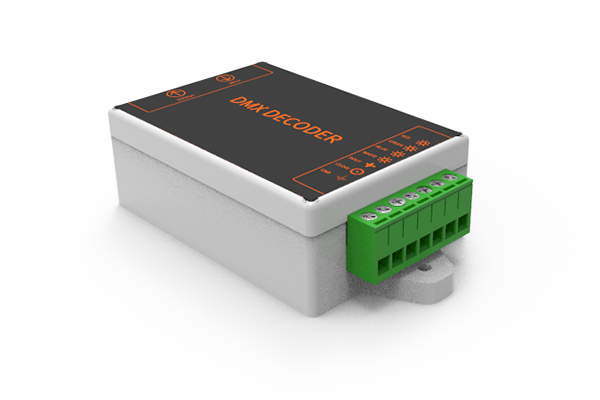

LNX-210D DMX constant voltage decoder

General-purpose DMX signal decoding constant voltage LED driver, connect each decoder in hand-in-hand manner, can connect various types of 5V / 12V / 24V type constant voltage light bar on the market

1. Two RJ45 network port interfaces

2. Automatically encode functions in connection order

3. Input signal automatic shaping and amplification function

4. Output constant voltage type RGB interface

5.Output current up to 24A

Email

Description
Solution
Parameters
Ordering

Parameters	Specifications
Input	DMX
Output	PWM
Voltage	12V/24V
Current	24A
Ports	2 RJ45
Distance/span>	200M
MTBF	10MH
Voltage	DC12V/24V
Power	1W
Temp	-10~55℃
Work Humidity	5%~90%
Temp	-40~70℃
Storage Humidity	5%~90%
Size	50mm(L)40mm(W)30mm(H)

Product model	Interfaces	Transmission distance	Power	Orderable
LNX-210D	2 RJ45 ports	200M	12V/24V	✔
