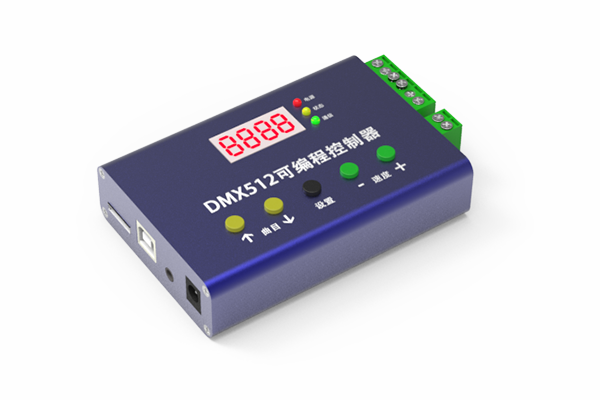

LNX-300D DMX Music Master Controller
This product is a general-purpose DMX controller with an SD card slot.
1.One output signal can be standard DMX512, DMX1024, DMX1536, DMX3072
2. With audio LINEIN interface, can analyze external music sound sources and synchronize lighting effects
3.Automatically identify and switch internal and external console signals
4. With SD card slot, the factory comes with 128M high-speed SD card
5. PC with a USB interface
6. Built-in DMX decoder encoding function
- Description

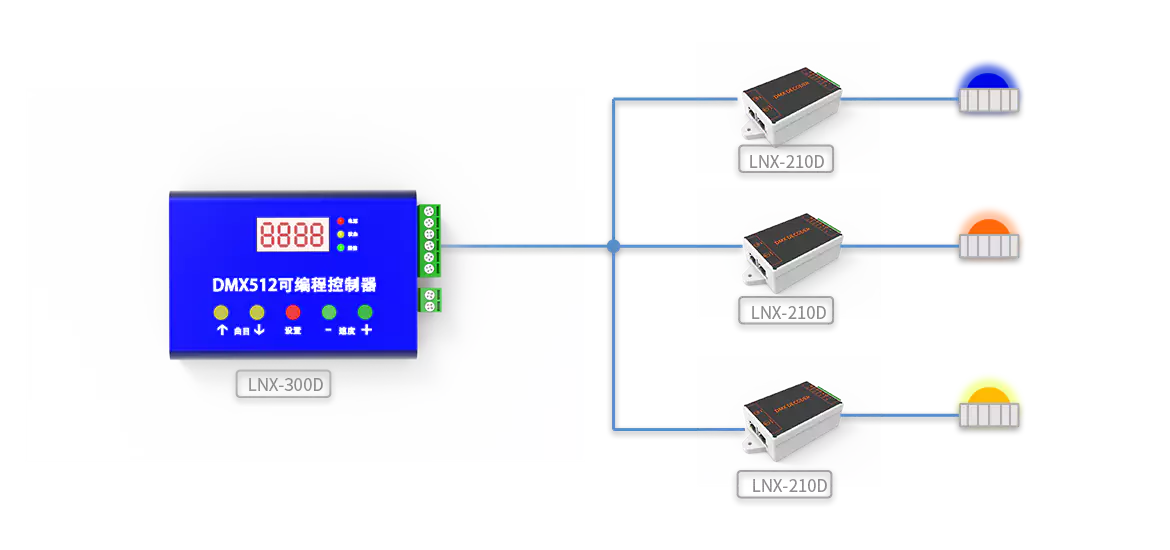

- Solution
- Parameter
- Order
-
parameter
specification
Control protocol
ARTNETControllable chip
WS2811/WS2812 etcDevice port
2 RJ45 uplink 100M ports: connect STP / UTP category 5 twisted pairTransmission distance
100mMTBF
100,000 hours
power supply
DC12V 1A（external）
Power consumption
3W
Operating temperature
-10~55℃
Working humidity
5%~90%
Storage temperature
-40~70℃
Storage humidity
5%~90% non-condensing
size
100mm(L)*80mm(W)*25mm(H)
-
Product number
Power supply
Orderable
LNX-300D
External DC12V 1A
✔
