LINETX LX10
Media Lighting Sync Master
A professional media lighting sync master controller integrating lighting control, audio output, video playback, and remote management. Suitable for stage performances, night tours, sports stadiums and other professional scenarios.
LX10 Media Lighting Sync Master
The LX10 Media Lighting Sync Master is a versatile lighting and multimedia master controller developed by LINETX Technology. Featuring a compact box design with dual Gigabit 1000M Ethernet ports and audio-video interfaces, it delivers powerful performance for a wide range of applications.
The LX10 connects to LINETX DMX distribution devices (such as LNX-378D, LNX-378T series) via ArtNet / sACN network protocols to drive on-site DMX512 fixtures, enabling long-distance, large-scale lighting control. Working with LINETX LnxEffect software, it can synchronize lighting, audio, and video output through timeline editing for a perfect audiovisual experience.
Supports controlling LINETX LNX-6xx series relay switches via timeline for synchronized electrical load control; built-in audio analysis engine for real-time audio signal driven lighting effects; supports KNXnet/IP building automation protocol integration.
Download Device ManualRich Feature Set
The LX10 Media Lighting Sync Master integrates a wealth of features suitable for various lighting/multimedia control projects.
Network Lighting Control
Connect DMX distribution devices via ArtNet / sACN protocols to drive on-site fixtures, enabling long-distance, large-scale lighting control with flexible output port expansion.
Multi-Protocol Support
Supports ArtNet, sACN, RDM, KNXnet/IP, MQTT and more protocols. Works with DMX distribution devices for flexible integration with various lighting systems with strong compatibility.
Media Playback & Video Mapping
Supports MP3 audio and MP4 video file playback with HDMI output. Supports Video Mapping (VPK) projection mapping, seamlessly blending lighting with video content.
Lighting CUE Recording
Supports recording ArtNet data from external lighting consoles or software, generating local CUE files to incorporate into light shows, easily reproducing professional effects.
Playback Schedule
Supports setting automatic playback schedules by day of week, date, time, or sunrise/sunset for unattended automated light show playback.
Audio Analysis Drive
Built-in 6 audio analysis sources (intensity, beat, spectrum, BPM, centroid, onset detection) for real-time audio signal analysis to drive lighting effects, creating rich sound-reactive experiences.
Dynamic Drawing Effects
Supports various dynamic drawing effects (rainbow, fire, bubbles, meteor, color gradients, spectrum) configurable directly in the WEB management backend for synchronized dynamic lighting.
WEB Management Backend
Provides a modern WEB management interface supporting 5 languages: 中文/English/Русский/日本語/Español. User-friendly interface with smooth operation.
Cloud Platform Integration
Supports cloud platform access for remote management and monitoring of device status, keeping you informed anytime, anywhere.

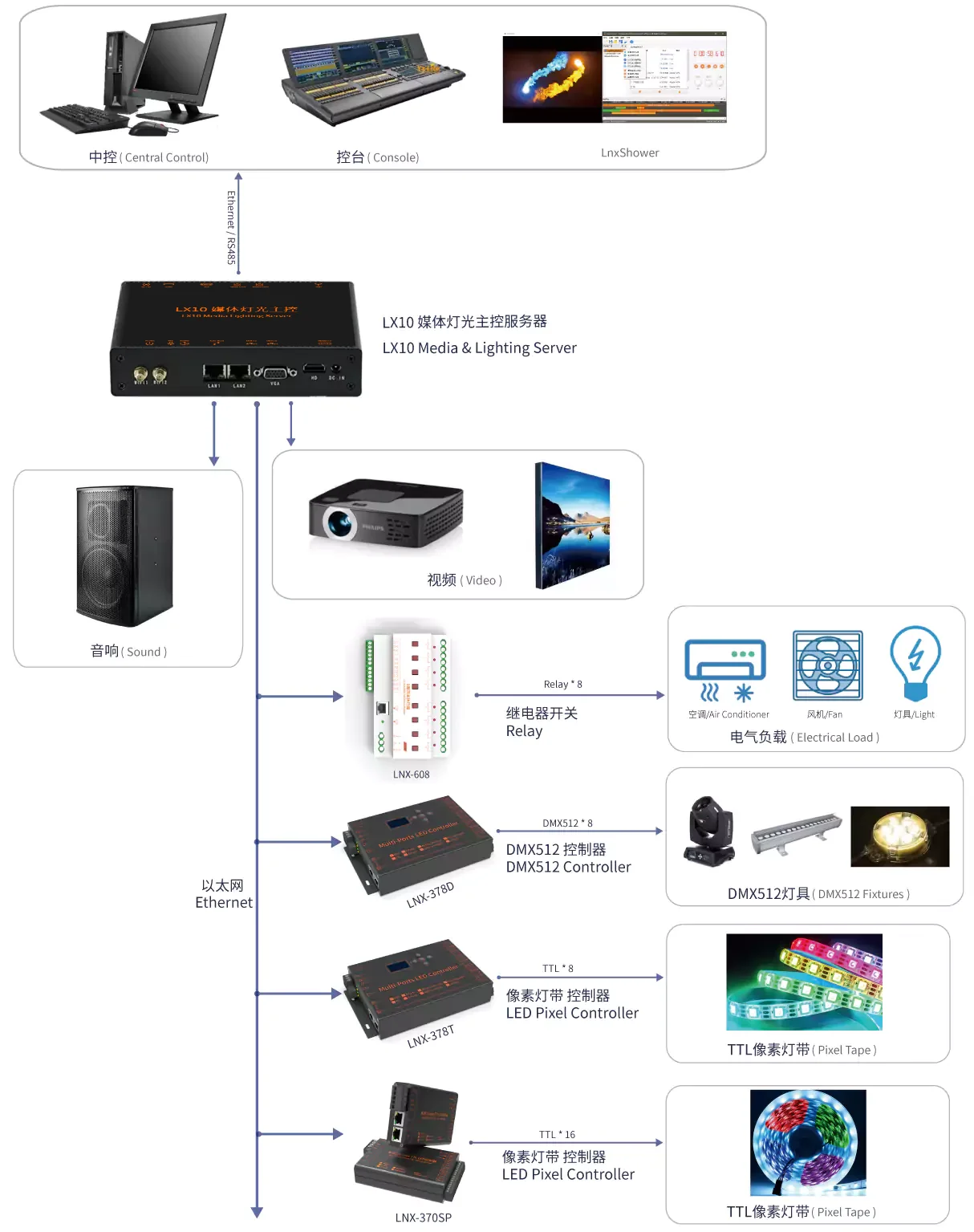

System Core Roles
The LX10 acts as the control host of the lighting system, connecting upstream to control computers, consoles or LnxEffect software, and downstream to audio, video equipment and various DMX distribution devices.
- LX10 acts as the control host of the lighting system, connecting upstream to control computers, consoles or LnxEffect, and downstream to audio, video equipment and various DMX distribution devices.
- LX10 has a set of command interfaces for system integration with centralized control systems.
- Supports data recording, capable of recording console data or data from software such as MADRIX, MADMAPPER, ARENA, etc.
- Connects to various LINETX DMX distribution devices (LNX-378, LNX-370SP, LNX-377XP, etc.) via dual gigabit Ethernet ports to expand DMX output domains.
- Supports audio analysis driven lighting effects with built-in dynamic drawing effects for rich sound-reactive experiences.
Versatile Professional Scenarios
The LX10 Media Lighting Sync Master can be widely applied in various lighting control scenarios, providing professional solutions for different needs.
Stage Performance
Synchronize stage lighting, audio and video projection. Supports real-time ArtNet input and pre-programmed light show playback for professional performances.
Night Tour & Tourism
Auto-play light shows scheduled by sunrise/sunset. Ideal for scenic spots, parks, building facades and other night tour projects to enhance the visitor experience.
Entertainment Venues
Perfect synchronization of lighting and music in bars, KTVs, nightclubs and more. Follows performance rhythms to create dynamic atmospheres and immersive experiences.
Sports Stadiums
Control venue lighting, large screens and audio systems during events. Synchronize with game rhythm to enhance the spectator experience.
LX10 Detailed Specifications
Box design, connects to DMX distribution devices via ArtNet/sACN network protocols for DMX512 output, suitable for various lighting control scenarios.
| Parameter | Specification |
|---|---|
| Control Protocols | ARTNET, sACN, RDM, KNXnet/IP, MQTT, WebSocket, UDP, RS485 |
| Lighting Control Method | ArtNet / sACN network output to DMX distribution devices |
| Device Ports | 1000M Ethernet × 2, 3.5mm Audio Output, MIC Input, USB3.0 × 2, HDMI, RS485 |
| Network Cable | Cat6, Cat5e |
| Wireless Network | WiFi 802.11 b/g/n |
| DC Power | 12V DC / 1A |
| Rated Power | 12W |
| Operating Temperature | -10~60℃ |
| Operating Humidity | 5%~60% |
| MTBF | 100,000 Hours |
| Storage Temperature | -40~70℃ |
| Storage Humidity | 5%~90% Non-condensing |
| Dimensions | 172 × 166 × 53 mm |
Powerful WEB Management Backend
The LX10 features a powerful WEB management system supporting 5 interface languages: 中文, English, Русский, 日本語, Español. Remotely access and manage via browser on computer or mobile device.
Mobile Responsive
Access via phone/tabletPort Configuration
ArtNet Universe settingsStatus Monitoring
Device running status
Ready to Upgrade Your Lighting System?
LX10 Media Lighting Sync Master — Professional, stable, and feature-complete lighting sync control solution.
